Description
SPECIFICATIONS
Back lighting: On/off White LED
Brand Name: LUCKYLAKER
Depth Capability of FFC1108-1: 328 feet( 100 m)
Depth Capability of FFCW1108-1: 130feet(45m)
Detecting Range: 0.6-183 Meter
Display: 2inch TN/ANTI-UV LCD
High-concerned chemical: None
Language: English
Manual Approved Language: English&Russian&German&Japanese
Origin: Mainland China
Power Input: AAA
Power Source: No. 7 Battery
Power requirement: 4* AAA batteries

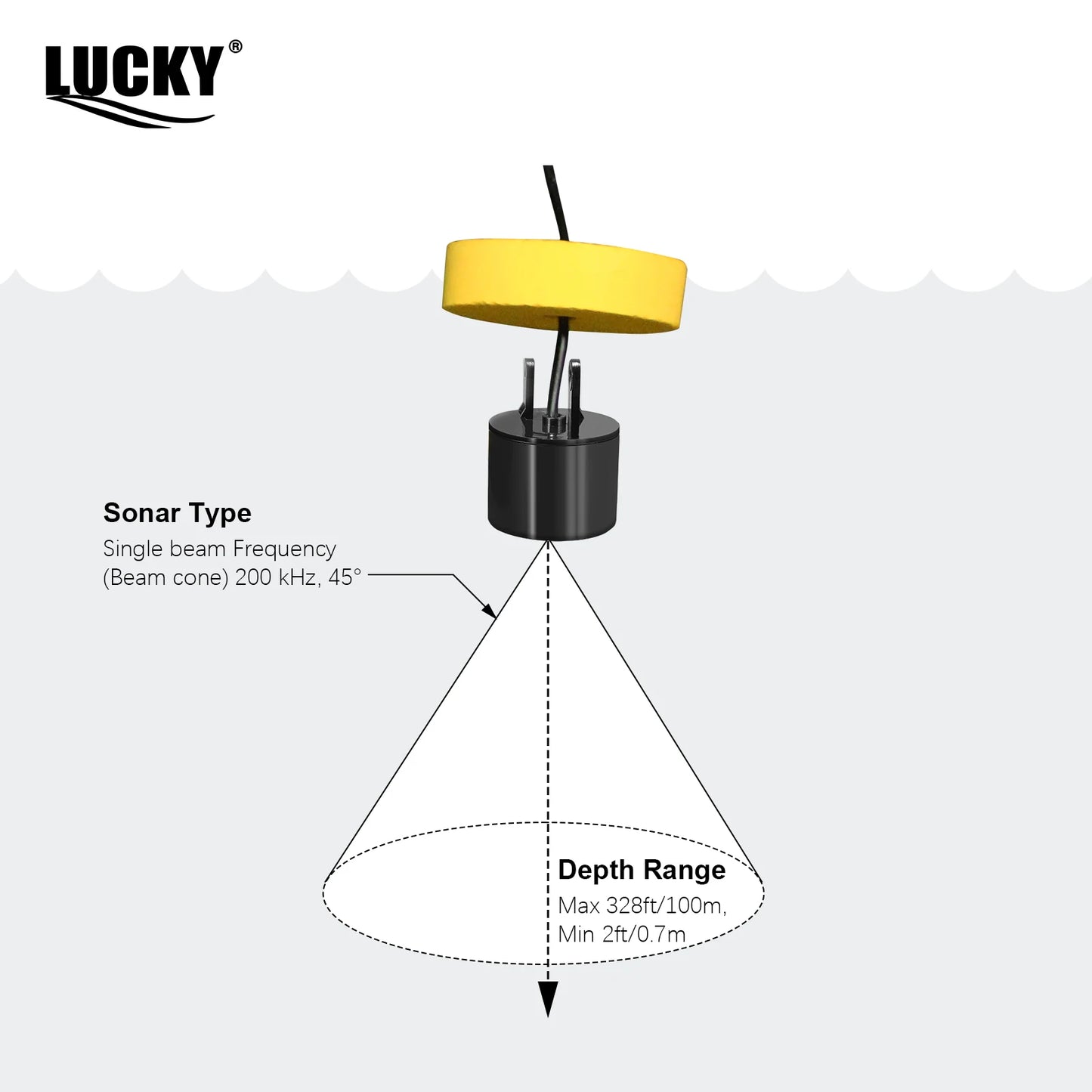

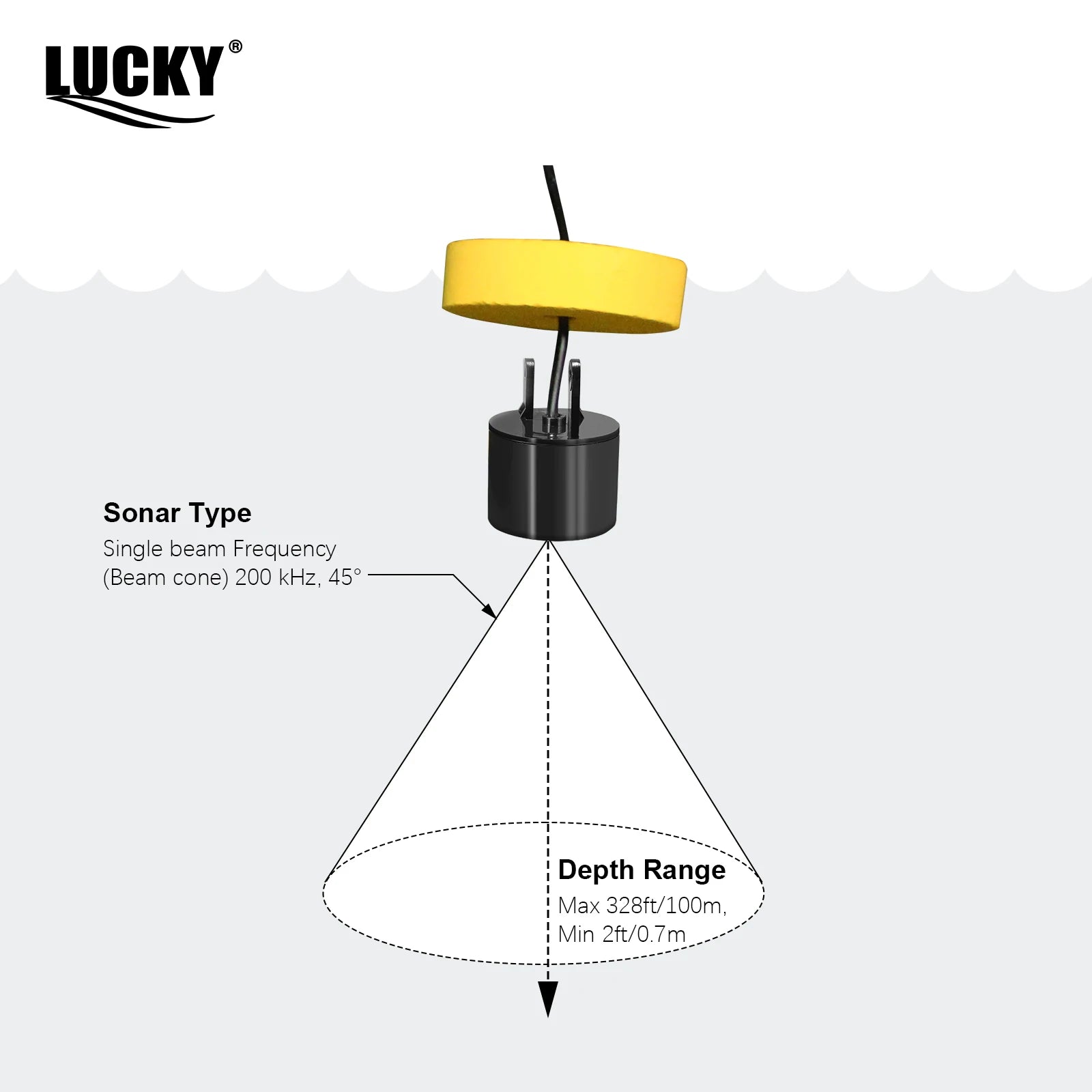

Sonar Coverage: FFC1108-1:45 degrees, FFCW1108-1:90 degrees,45 degrees beam angle in 200Khz of FFC1108-1
Sonar Frequency: Cable: 200Khz
Waterproof design: Level-4 (spray-water-proof)
PRODUCT SPECIFICATION OF FFC1108-1:
1) Display: 2inch TN/ANTI-UV LCD
2) Back lighting: White LED
3) Depth Capability: 328feet(100m)
4) Power Requirement: 4xAAA alkaline batteries（not included）
5) Waterproof design: level-4 (spray-water-proof)
6) Show water depth, fish location, and bottom grass & rock
7) User selectable sensitivity,depth units, and fish alarm setting
8) Operational Temperature: 14degF to 122degF(-10degC to 50degC)

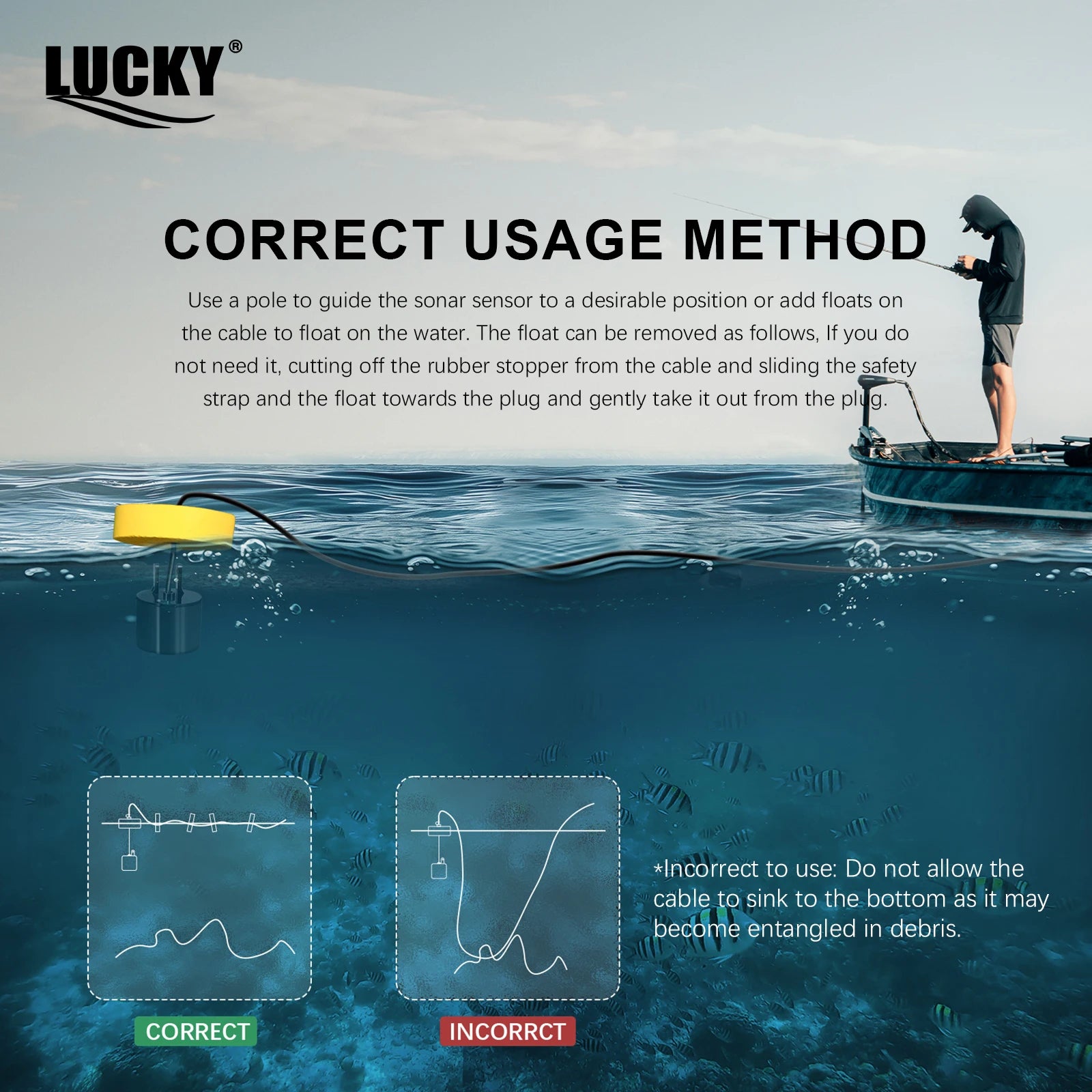

1.Adjust the sensor float to be at least 18 centimeters away from the sensor.2.Connect the probe and receiver and place the probe into the water.
3.Turn on the receiver.
Detection depth of 100m/328ft

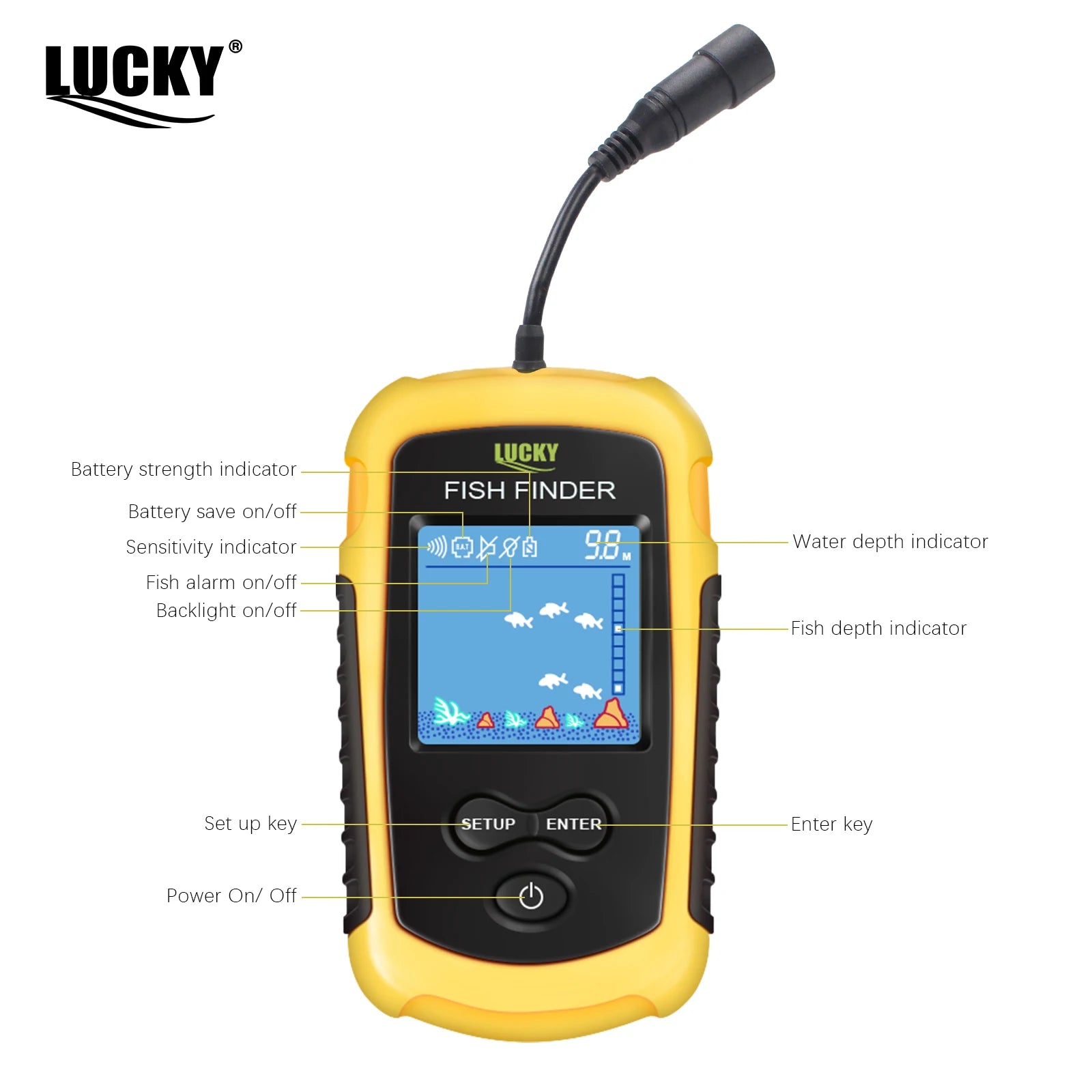

1.Battery strength indicator
Detection depth of 100m/328ft1.Battery strength indicator2.Battery save on/off
3.Sensitivity indicator
4.Fish alarm on/off
5.Backlight on/off
6.Set up key
7.Power On/ Off
8.Water depth indicator
9.Fish depth indicator
10.Enter key

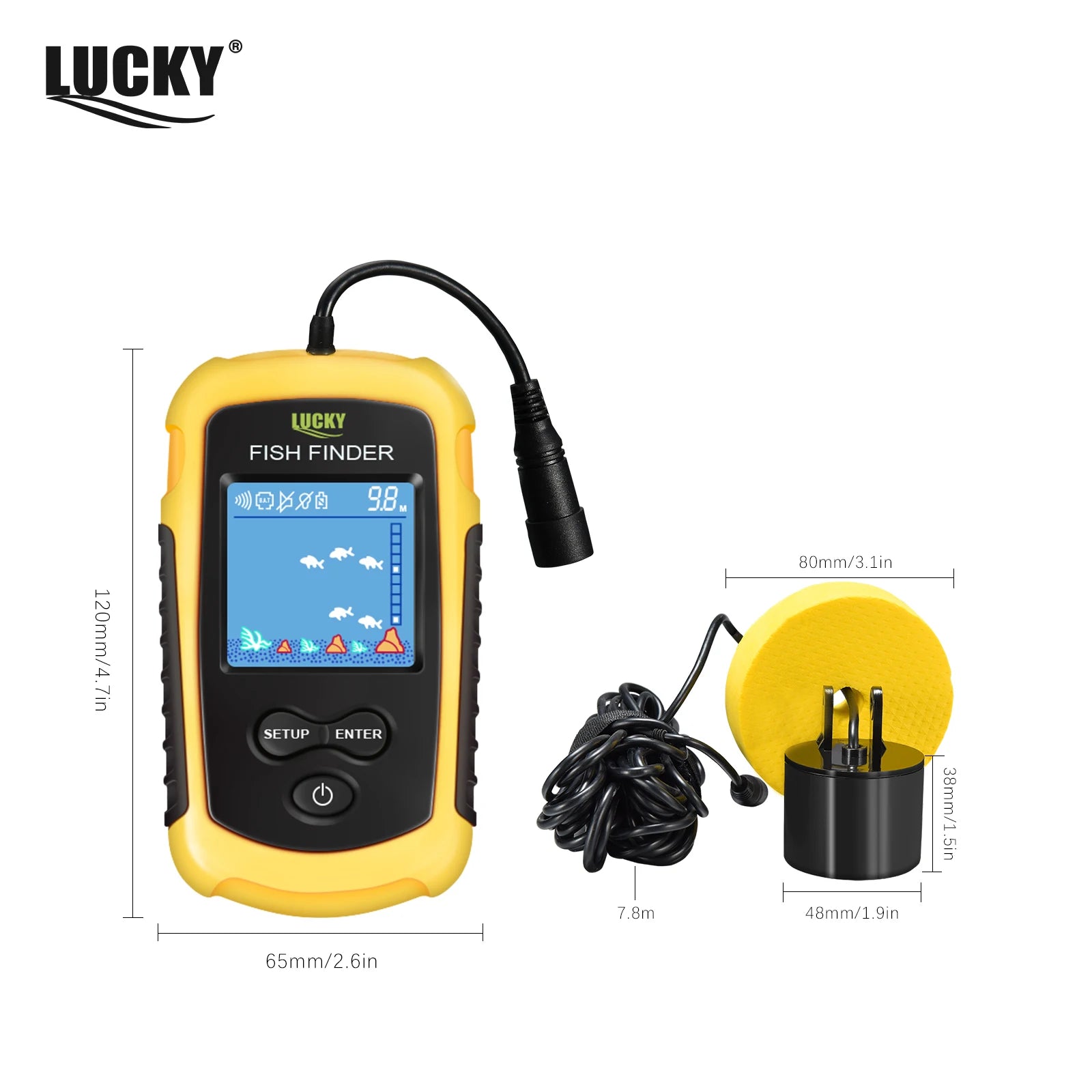

1.Float
1.Float2.Transducer
3.Cable
Find fish in lakes, ponds and rivers. Cast from dock, shore, bank or kayak.
Find fish in lakes, ponds and rivers. Cast from dock, shore, bank or kayak.View water depth, water temperature,
through a receiver.
1) Display: 2 inch LCD
through a receiver.
1) Display: 2 inch LCD2) Sonar coverage: 45° in 200KHz
3) Depth capacity: 0.7M-100M
4) Power: 4 x AAA batteries (NOT included)
5) Net weight: 163g / 5.7oz
6) Operational Temperature: 14°F to 122°F (-10°C to 50°C)
Different fishing ways:
1.Night Fishing Probe
2.Turbid Water Probe
3.Ice Fishing Probe
Attention:
1.Kindly remind that FFC1108-1 has only wired mode, and you cannot match the sensor and monitor randomly.
2.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate.
Please use fish finder in outdoor deep water.
3.The monitor cannot display the size of the fish.
4.Manual:English/German/Russian/Japanese
